SL Proline T & SL Proline T Mega
Double winner: ICONIC AWARD 2023 in the Innovative Architecture category and German Design Council Award 2024 for Excellent Product Design

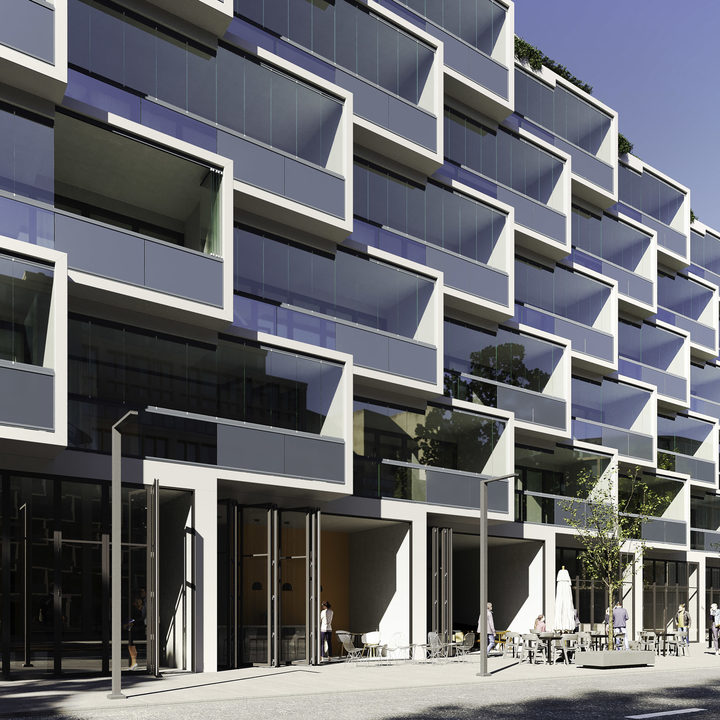

The Proline T and Proline T Mega are modular all-glass systems from Solarlux that can help to tackle any challenge when it comes to glazing for open and recessed balconies or facades. A hallmark of the slide-and-turn systems is that panels can be fully opened and stacked neatly to the side.
Protection for urban spaces - the all-glass system protects the facade and fabric of the building, including multi-storey and high-rise buildings. The visible profile has been reduced to create a pure all-glass look that subtly blends into the architecture. The system enables complete glazing of facades, balconies and loggias up to 3 metres high.
The specific strength of the Proline T systems is their exceptional sound insulation and architectural properties that can withstand maximum wind loads. The innovative profile allows for new benchmarks in glass thickness that meet the most demanding requirements.
The Proline T systems are suitable for open and recessed balconies, facades and interior partitions.
Dimensions and build
- Max profile height
- 39 mm (Proline T), 60 mm (Proline T Mega)
- Max element size
- Up to 3 m high and 1 m wide
- Max element weight
- Up to 80 kg
- Height compensation
- Up to 35 mm
- Width alignment
- Up to 16 mm
- Floor tracks
- Surface-mounted and accessible to DIN 18040
Glass, seals and build
- All-glass system with a maximum profile height of 60 mm, even for the heaviest elements
- Sound insulation options: glass thickness selection, all-round aluminium profile, laminated safety glass with additional acoustic film
- Additional side profile connections and top and bottom brush seals in the running tracks
Performance figures
Certified performance figures for this system. Data sheets, CAD details and test certificates are available on request.
- Maximum sound insulation
- Rw up to 30 dB
- Drainage
- Frost-proof
- Building protection
- Extreme weather and climate
- Building's shell
- Reduced heat loss
- Air circulation
- Hygiene and fresh air guaranteed
- Height compensation
- Up to 35 mm
How this system is put together
The individual components and details that decide how a system performs over years of use.
Free movement
- Customised, form-fitted sliding components inside the running track
- Long-term durability
- Easy operation even for large-format or heavy panels
Floor tracks
- Two multifunctional floor tracks are available for each system
- Surface-mounted version and an accessible version to DIN 18040
- Accessible variants used primarily in floor-to-ceiling balcony glazing
Air circulation
- Integrated trickle ventilation, lockable in two positions
- Controlled ventilation without opening the balcony
- Hygiene and fresh air guaranteed
Tolerances
- Dimensional tolerances or building subsidence levelled out via width alignment of up to 16 mm
- Height adjustment profile compensating up to 35 mm
- Frost-proof drainage
Sound insulation
- Maximum sound insulation of Rw up to 30 dB
- Selection of glass thickness, all-round aluminium profile and laminated acoustic film
- Additional side profile connections and brush seals top and bottom
What this system gives you
- Open balconies
- Recessed balconies
- Facades
- Interiors
- Accessible floor tracks and sealed bearing running mechanism
What you can specify
Security & certification
- Anti-lift and anti-drop safety devices
- Accessible floor tracks to DIN 18040
- Designed to withstand maximum wind loads
Options
- Open and recessed balconies, facades and interior partitions
- Surface-mounted or accessible floor track to DIN 18040
- Selection of glass thicknesses for acoustic performance
Finishes & materials
- All-glass look with a reduced visible profile
- Aluminium profiles in the standard colour range
- Co-ordinated with balcony and facade designs
System details designed to impress
Quieter living
Sound insulation of up to Rw 30 dB against street and urban noise.
High break resistance
No glass-to-metal contact for greater safety.
Safe air exchange
Up to three ventilation positions for a healthy indoor climate.
