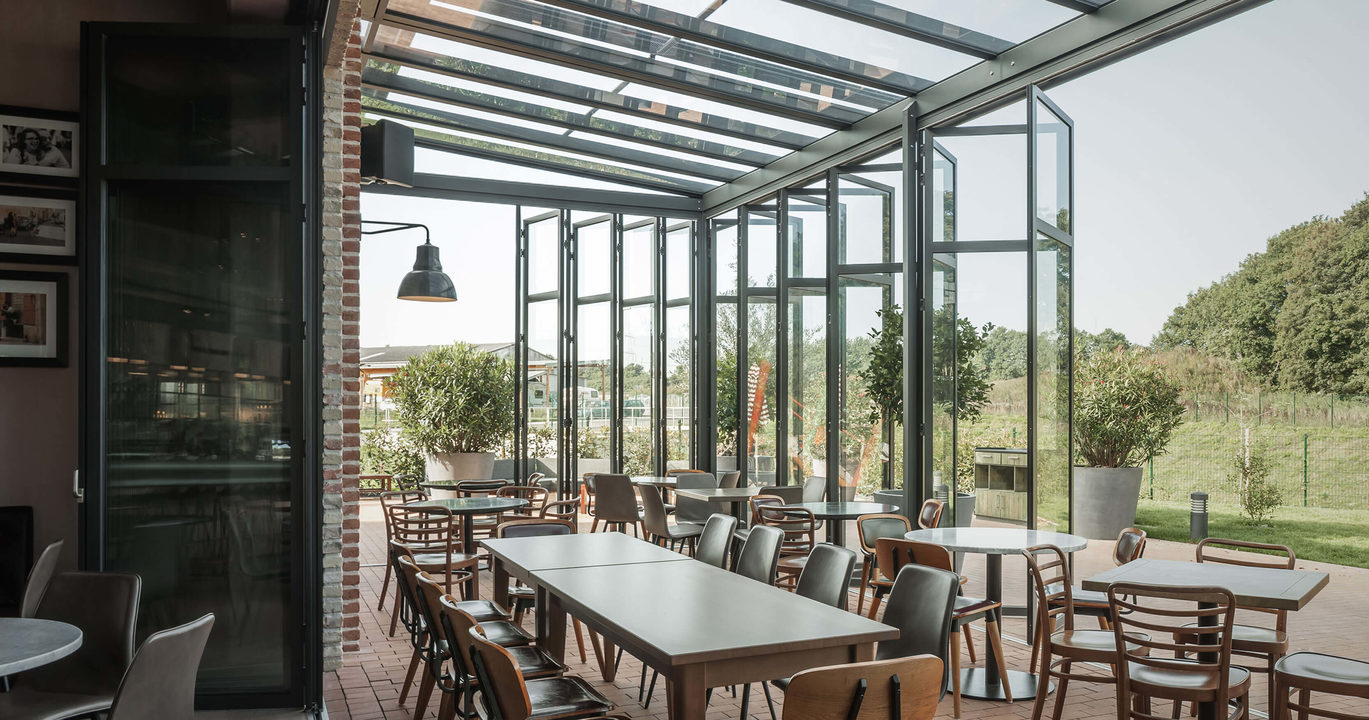

SL 45 bi-folding door
One section of the panel opens inwards, the other outwards
What makes the SL 45 non-insulated bi-folding door truly special is its range of different opening options: one section of the panel opens inwards, the other outwards. An optional turn-and-tilt panel can be included in the system to make ventilation easier.
Two seal levels provide optimum insulation against the wind and rain - the perfect shelter for any patio or balcony. The built-in Solarlux convenience lock with handle, bolt-catch lock with profile cylinder, and locking bolt guarantees a high level of anti-burglary protection.
Dimensions and build
- System type
- Non-insulated bi-folding door
- Material
- Aluminium
- Thermal break
- None — non-insulated
- Height adjustment
- Up to 8 mm after installation
- Locking stroke
- 24 mm into top and bottom frame profiles
- Floor track
- Flush floor track without rebate for accessible living
Glass, seals and build
- Slender frame and panel profiles for large glass areas
- Double all-round seal: vertical double EPDM seals, horizontal double brush seals with PE baulk
- Running and floor tracks without rebates
Performance figures
Certified performance figures for this system. Data sheets, CAD details and test certificates are available on request.
- Water tightness
- Up to 4A
- Sound reduction index
- R'w up to 25 dB
- Thermal transmission coefficient
- Non-insulated
- Air permeability
- 2
How this system is put together
The individual components and details that decide how a system performs over years of use.
Inward and outward sections
- One section of the panel opens inwards while the other opens outwards
- Optional turn-and-tilt panel can be built in for easier ventilation
- The same system suits domestic and commercial openings
Concealed carriage
- Double-paired running wheels on sealed bearings
- Independent axles for each running mechanism
- Slides easily and quietly across wide spans
Solarlux convenience lock
- Built-in lock with handle, bolt-latch lock with profile cylinder and locking bolt
- Maximum burglar resistance for a non-insulated system
- Plus special gears with a 24 mm stroke into the top and bottom frame profiles
Adjustment and accessibility
- Panel width adjustable with a screwdriver after installation
- Height adjustable up to 8 mm to compensate for structural sagging
- Flush floor track without rebate gives a threshold-free opening
What this system gives you
- Multiple uses both for the home and commercial buildings
- Optional turn-and-tilt panel for easier ventilation
- Two seal levels against wind and rain
What you can specify
Security & certification
- Built-in Solarlux convenience lock with handle, bolt-latch lock with profile cylinder and locking bolt
- Special gears with a 24 mm locking stroke into the frame profiles
- Two sealing levels against wind and rain
Options
- Inward and outward opening sections in one panel
- Optional turn-and-tilt panel for ventilation
- Flush or rebated floor track
Finishes & materials
- Aluminium with around 30 RAL colours as standard, matt and gloss
- Dual-colour finishes available
System details designed to impress
Mixed opening directions
One section opens inwards while the other opens outwards, for maximum flexibility.
Optional turn-and-tilt panel
Easier day-to-day ventilation without opening the whole wall.
Two seal levels
Optimum insulation against wind and rain for any patio or balcony.
