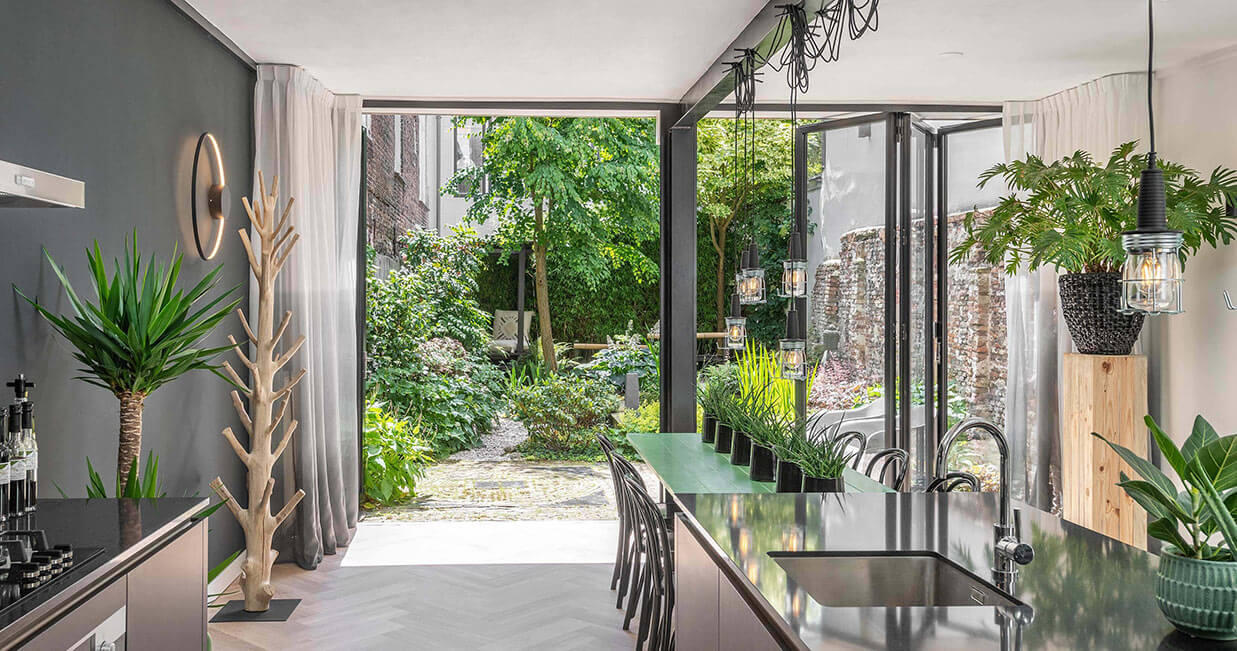

Ecoline bi-folding door
A wide choice of floor tracks, openings and colour options, with only a 99 mm frame sightline
With a building depth of 67 mm, maximum panel width of 1 metre and maximum height of 3 metres, the aluminium Ecoline bi-folding door system boasts an unbroken, slim sight line of 99 mm at the panel joint.
This is thanks to the heart of the bi-folding door: the bionicTURTLE®, a multi-functional break profile that houses the locking mechanism and the fittings while keeping the profiles exceptionally slim.
The Ecoline bi-folding door is PAS 24:2016 certificated.
Dimensions and build
- Building depth
- 67 mm
- Sight line at panel joint
- 99 mm
- Max panel width
- 1.0 m
- Max panel height
- 3.0 m
- Material
- Aluminium
- Locking stroke
- 24 mm into top and bottom frame profiles
- Panel configurations
- 1 to 12 panels, inward or outward
- Burglar resistance
- RC2/RC2N, RC3 available
Glass, seals and build
- Double or triple glazing in the bionicTURTLE® profile
- bionicTURTLE® multi-functional break profile houses the locking mechanism and fittings
- Compact 67 mm building depth with the same 99 mm sight line as the Highline
Performance figures
Certified performance figures for this system. Data sheets, CAD details and test certificates are available on request.
- Burglar resistance
- RC2/RC2N
- Water tightness
- Up to 8A
- Resistance to wind load
- B4
- Thermal transmission coefficient
- Uw > 1.1 W/m²K
- Air permeability
- 3
- Sound reduction index
- Rw up to 45 dB
How this system is put together
The individual components and details that decide how a system performs over years of use.
Carriage
- Stainless-steel carriage with double-layered grooved ball bearings
- Runs smoothly and quietly with optimum load transfer
- Extremely low-maintenance and non-wearing
Locking mechanism
- RC2 version available
- 24 mm upward and downward stroke in the frame
- Can be connected to security technology with concealed cable routing
Panel catch
- Locks an open swing panel against the next folding panel
- Functional catch allows the panels to be opened and closed easily
“TwinX” panel centring
- Concealed centring mechanism for a uniform panel design
- Consistent joint alignment with no interruption to the sealing level
- Constant pressure on the seal
Cleaning pin and 3S impact protection
- Cleaning pin for easy cleaning, even at great heights, with misuse prevention
- Clip-in aluminium impact protection covering the lock groove
- Adjustable profile compensates for panel tolerances without breaking the seal
What this system gives you
- Slim 99 mm sight line at the panel joint
- Patented bionicTURTLE® multi-functional thermal break profile
- Compact 67 mm building depth
- Stainless steel runner assembly
- Comfort Snap panel catches
- Extremely low-maintenance design
What you can specify
Security & certification
- RC2/RC2N burglar resistance as standard, RC3 available
- PAS 24:2016 certificated
- Secured by Design (SBD) accredited
Options
- Inward or outward opening with left, right or split stacking
- 1 to 12 panels in one opening
- Wide choice of floor tracks, including accessible variants
Finishes & materials
- Around 30 RAL colours as standard, matt and gloss
- Dual-colour finishes available
- Coastal specification coatings available
System details designed to impress
Slim, strong profiles
The bionicTURTLE® shape keeps profiles extremely slim even with large, heavy panels.
Certified security
Available certified to RC 2 and RC 3 for genuine peace of mind.
Award-winning
German Design Award, iF Design Award, IDA and Iconic Award winner.

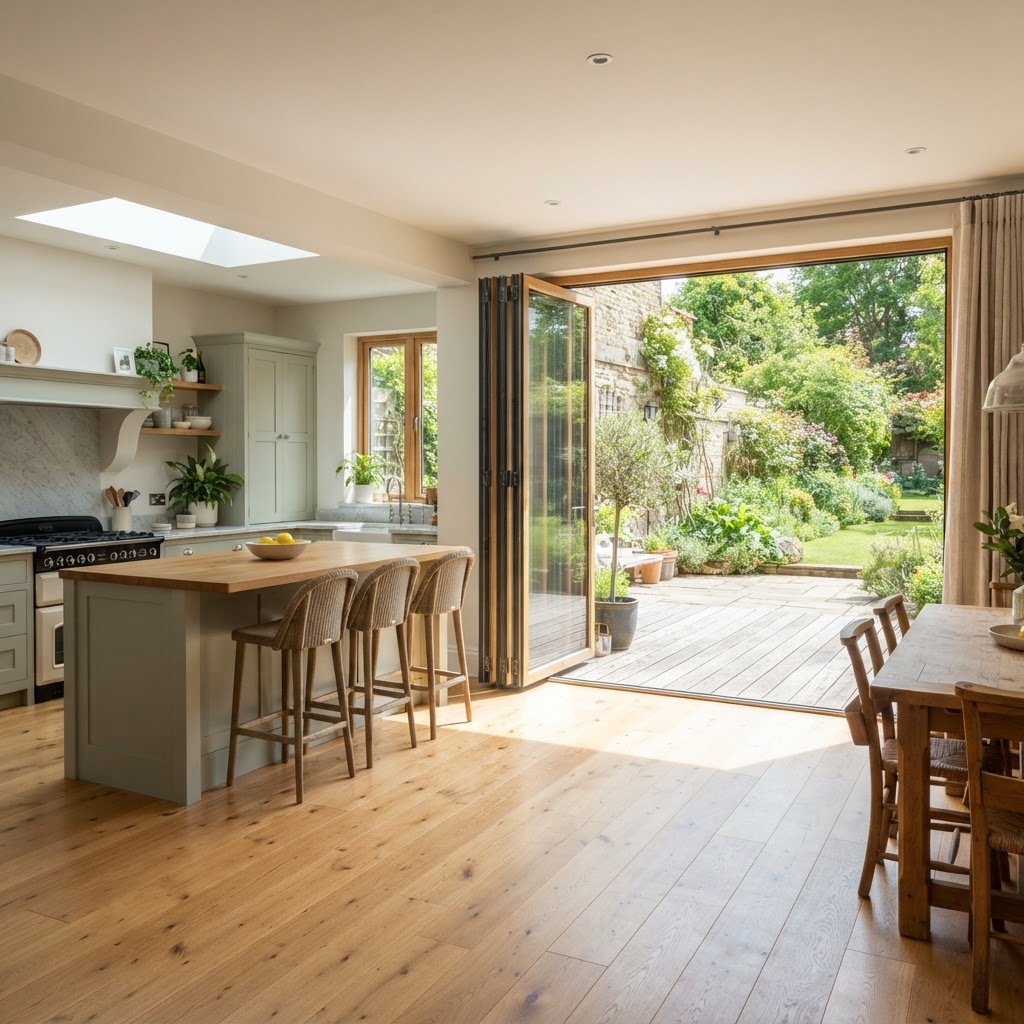

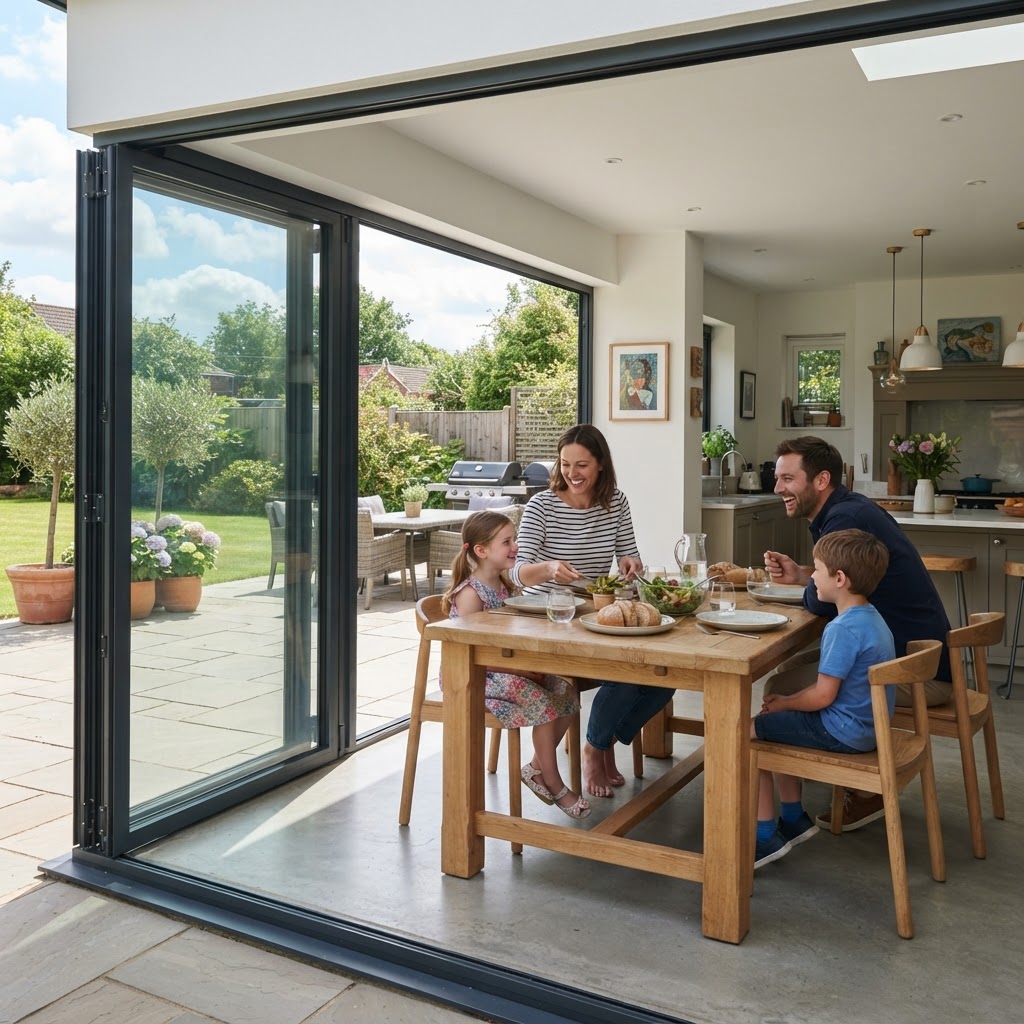

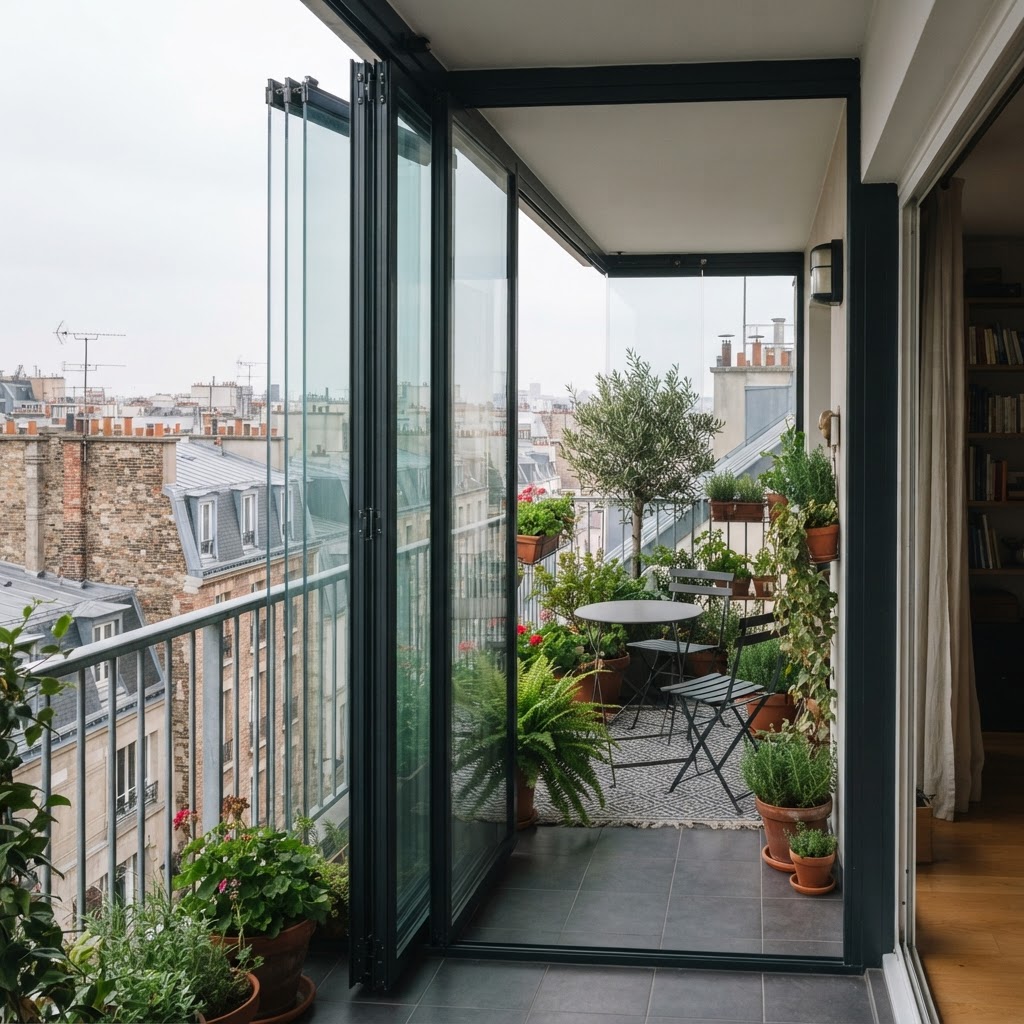

More Bi-folding doors
