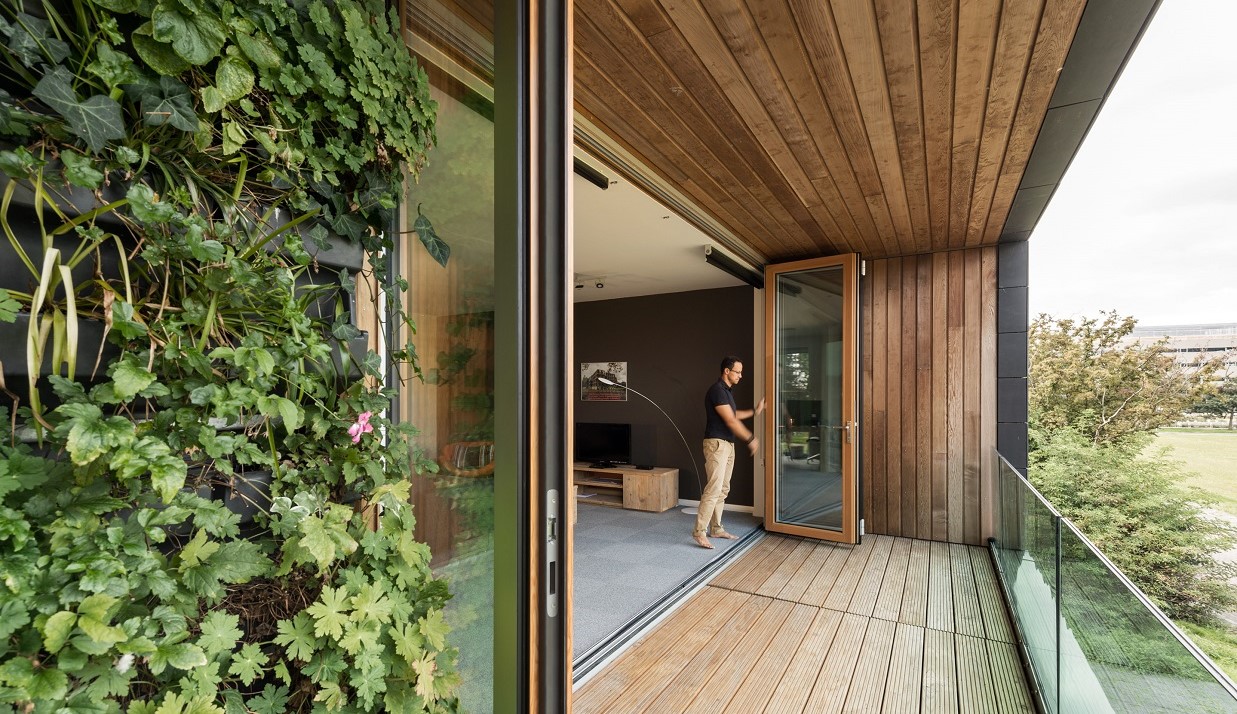

Combiline bi-folding door
The perfect combination for a weatherproof solution
With its wood on the interior and aluminium profiles on the exterior, the Combiline bi-folding door gives you the best of two worlds: warmth on the inside and maximum weatherproofing on the outside.
With a building depth of 86 mm and a slender sight line in the panel joint of just 143 mm, it ensures maximum transparency when the door is closed. This is thanks to the heart of the bi-folding door: the bionicTURTLE®, a multi-functional break profile.
Dimensions and build
- Building depth
- 86 mm
- Sight line at panel joint
- 143 mm
- Material
- Wood interior, square aluminium exterior cover shell
- Locking stroke
- 24 mm into top and bottom frame profiles
- Drainage
- Two continuous gaskets for optimum system drainage
- Colours
- 30 standard colours, matt or gloss
Glass, seals and build
- Square aluminium cover shell protects the timber sub-frame outside
- Solid wood sections face the interior for warmth
- Two continuous gaskets guarantee optimum system drainage
Performance figures
Certified performance figures for this system. Data sheets, CAD details and test certificates are available on request.
- Burglar resistance
- RC2/RC2N
- Water tightness
- Up to 7A
- Resistance
- C3
- Thermal transmission coefficient
- Uw > 1.1 W/m²K
- Air permeability
- 3
- Sound reduction index
- R'w up to 42 dB
How this system is put together
The individual components and details that decide how a system performs over years of use.
Carriage
- Stainless-steel carriage with double-layered grooved ball bearings
- Runs smoothly and quietly with optimum load transfer
- Extremely low-maintenance and non-wearing
Locking mechanism
- RC2 version available
- 24 mm upward and downward stroke in the frame
- Concealed cable routing, connectable to security technology
Weatherproofing
- Square aluminium cover shell around the wood/aluminium sub-frame
- Two continuous gaskets for optimum system drainage
- bionicTURTLE® multi-functional break profile at the heart of the system
“TwinX” panel centring
- Concealed centring for a uniform panel design
- Consistent joint alignment and constant pressure on the seal
- Adjustable profile with no interruption to the sealing level
Cleaning pin and 3S impact protection
- Cleaning pin for easy cleaning at height, with misuse prevention
- Clip-in aluminium impact protection covering the lock groove
What this system gives you
- Wood interior with square aluminium exterior cover shell
- High thermal insulation
- Choice of 30 standard colours in matt or gloss
- Optimum system drainage
- High-end product for high-quality projects
What you can specify
Security & certification
- RC2/RC2N burglar resistance
- RC2 version of the locking mechanism available
- 24 mm locking stroke into the frame profiles
Options
- Wood inside, aluminium outside — warmth and weather protection in one system
- High-end residential and commercial projects
- Two continuous gaskets with square aluminium cover shell
Finishes & materials
- Choice of 30 standard colours in matt or gloss
- Aluminium shell in the full RAL range
- FSC® and PEFC certified timber sections available
System details designed to impress
Maximum weatherproofing
A square aluminium cover shell protects the timber beneath from the elements.
Continuous gaskets
Two continuous gaskets ensure optimum system drainage.
Sustainable timber
FSC® and PEFC certified wood sections inside the frame.
