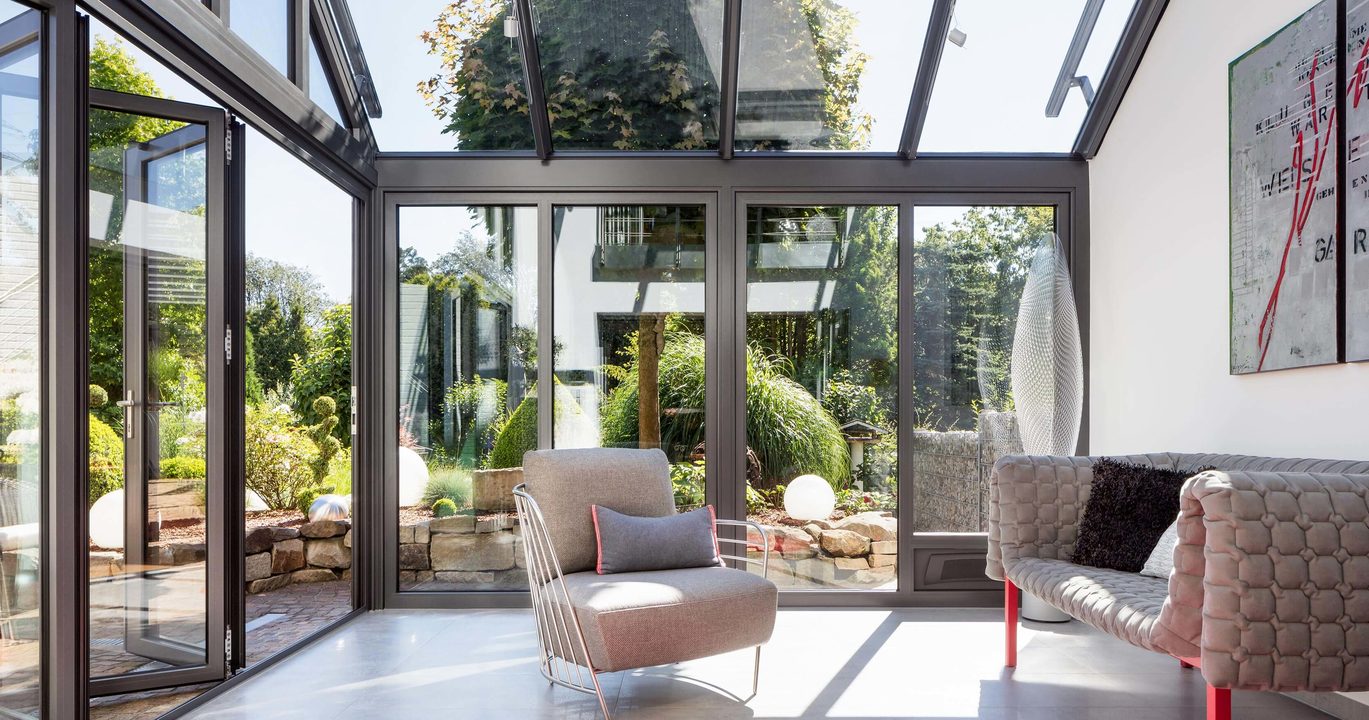

SDL Nobiles wintergarden
Minimalist structure, slender rafter profiles
The SDL Nobiles is the perfect choice for homes that require a particularly light and delicate design style. The minimalist structure of the designer rafters makes the roof surface flat on the outside, while the slender rafter profiles with special die-cast aluminium covers make the structure seem almost to float.
You can have a bespoke, highly efficient, thermally insulated glazed extension which suits the style of your home or commercial property, and with your choice of ventilation, heating, lighting and automation it will provide the perfect space.
Made with high-quality sustainable low maintenance aluminium, available in 30 RAL colours as standard.
Dimensions and build
- Rafters
- Interior structural members, 95 mm tapered to 60 mm
- Roof pitch
- 5 – 45°
- Glazing
- 28 mm – 44 mm
- Drainage
- In the glass joint
- Wall joint
- Fast assembly
- Rafter covers
- Special die-cast aluminium covers
Glass, seals and build
- Glazing from 28 mm to 44 mm
- Internal structural members keep the roof surface flat outside
- Drainage integrated in the glass joint
Performance figures
Certified performance figures for this system. Data sheets, CAD details and test certificates are available on request.
- Rafters
- Slim sight lines, interior structural members
- Drainage
- In the glass joint
- Roof pitch
- 5 - 45°
- Glazing
- 28 mm - 44 mm
- Fast assembly
- Of wall joint
How this system is put together
The individual components and details that decide how a system performs over years of use.
Minimalist designer rafters
- Slender rafter profiles from 95 mm tapered to 60 mm
- Special die-cast aluminium covers
- The structure appears almost to float
Flat outer roof surface
- Internal structural members for a flat roof surface outside
- Drainage hidden in the glass joint
- Fast assembly of the wall joint
Climate control
- Choice of ventilation, heating, lighting and automation
- Thermally insulated aluminium roofing system
- High-quality, sustainable, low-maintenance aluminium
What this system gives you
- Thermally insulated aluminium roofing system
- Internal structural members create an almost flat external profile
- 95 mm rafter width tapered to 60 mm with notched rafter heads
- Compatible with Solarlux sliding, bi-folding and fixed glazing
- Ventilation via manual or electric skylights and ventilators
What you can specify
Security & certification
- Thermally insulated aluminium roofing system
- Concealed drainage in the glass joint
- Bespoke, highly efficient construction
Options
- Roof pitches from 5° to 45°
- Ventilation, heating, lighting and automation
- Compatible with Solarlux sliding, bi-folding and fixed glazing
Finishes & materials
- 30 RAL colours as standard
- Die-cast aluminium rafter covers
System details designed to impress
Flat from outside
The minimalist rafter structure integrates into the existing house architecture.
Floating appearance
Slender profiles with die-cast aluminium covers make the structure seem weightless.
No condensate weak points
Precisely designed insulation zones are integrated into all joint areas.
