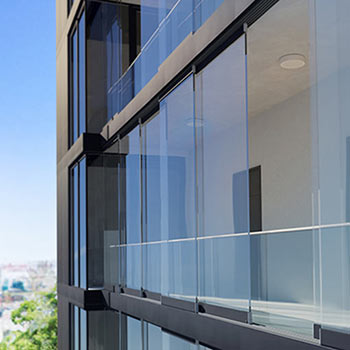

SL 23 balcony glazing
Non-insulated all-glass sliding glazing that protects balconies and loggias from wind, weather and noise
The SL 23 is a non-insulated all-glass sliding system for balconies and loggias. It is mounted in front of the guardrail and uses linear glass panes fixed in aluminium profiles at the top and bottom, so the balcony keeps its transparency.
The system is designed to meet the static requirements and the visual demands of modern architecture, particularly on higher levels. Simplified self-opening and an integrated soft-close lock make the panels easy to handle despite their weight.
The SL 23 is available in 2 and 3-track versions and can accommodate structural tolerances with 12 mm of lowering and 5 mm of raising.
Dimensions and build
- System type
- Non-insulated all-glass sliding system
- Track configurations
- 2 and 3 tracks
- Glazing
- 12 and 15 mm TSG/TSG-H, up to 16 mm LSG
- Panel weight
- Up to 150 kg per carriage system
- Tolerance absorption
- 12 mm lowering and 5 mm raising
- Mounting position
- In front of the guardrail
Glass, seals and build
- Linear glass panes fixed in aluminium profiles top and bottom
- Toughened safety glass with heat-soak test, or laminated safety glass
- Panels polished on all edges with concealed clamping
Performance figures
Certified performance figures for this system. Data sheets, CAD details and test certificates are available on request.
- System type
- Non-insulated all-glass
- Opening
- Sliding, 2 or 3 tracks
- Tolerance
- 12 mm lowering / 5 mm raising
- Glass fixing
- Aluminium profiles top and bottom
How this system is put together
The individual components and details that decide how a system performs over years of use.
All-glass construction
- Linear glass panes fixed in aluminium profiles at the top and bottom
- No vertical profiles, so the balcony keeps its transparency
- Mounted in front of the guardrail
Safety devices
- Anti-drop device at the top and anti-lift device at the bottom
- Panels kept at the same level at all times, even under heavy loads
- Concealed devices built into the profile
Operation
- Simplified self-opening and an integrated soft-close lock
- Simplified self-unlocking of the next panel
- Noise-reduced stainless steel carriages on sealed bearings
Tolerance absorption
- Accommodates 12 mm of lowering and 5 mm of raising
- Built for the static requirements of higher levels
- Designed to meet the visual demands of modern architecture
What this system gives you
- Non-insulated all-glass sliding system
- Linear glass panes fixed in aluminium profiles top and bottom
- Available in 2 and 3-track versions
- Integrated soft-close lock for easy operation
- Accommodates 12 mm lowering and 5 mm raising
- Designed for mounting in front of the guardrail
What you can specify
Security & certification
- Anti-lift and anti-drop safety devices
- Integrated soft-close lock
- Toughened glass with heat-soak test
Options
- 2 and 3 track versions
- Flat or standard floor track
- Panels able to open to the left, right or both sides
Finishes & materials
- Aluminium profiles
- Glass panes polished on all edges
- All-glass appearance without vertical profiles
System details designed to impress
Secure at height
An upper anti-lift device provides maximum safety at high wind loads.
Ventilated
Overlapping panels give permanent ventilation with driving rain protection.
Corner options
Corner solutions are possible for wraparound balconies.
